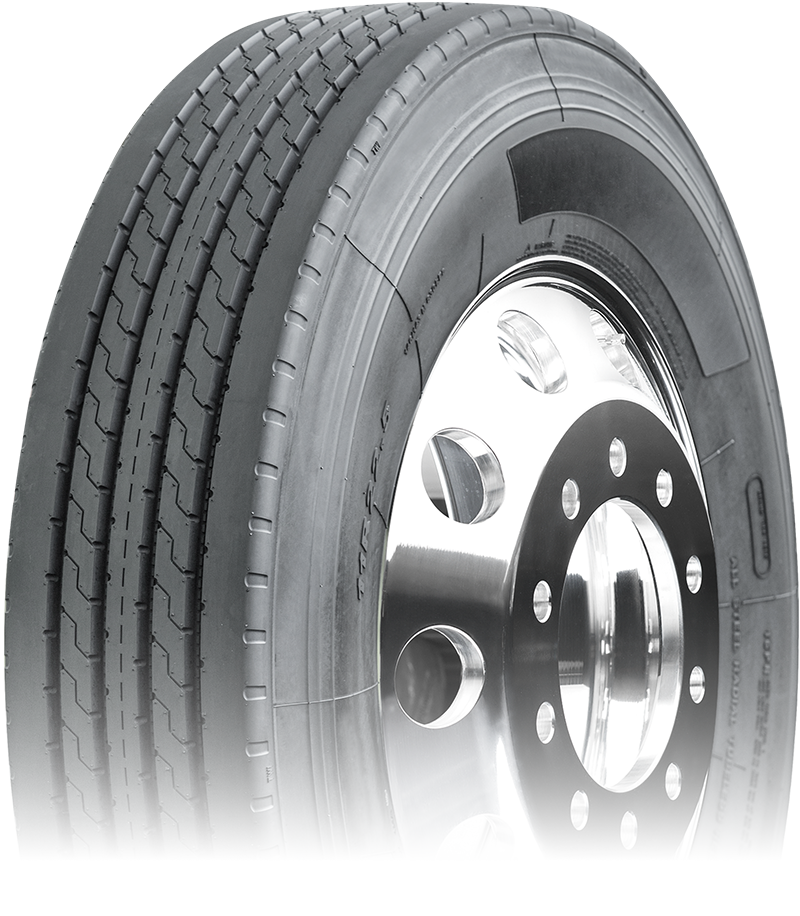

DT41
Regional Trailer
The Defiance DT41 is a regional trailer tire engineered specifically for spread axle and multi-axle high scrub applications. The DT41 features a contoured shoulder to reduce shoulder scrubbing wear in spread axle and multi-axle use. The DT41 is also suitable for tandem van applications. It will allow fleets to consolidate their trailer tire inventory to one single tire model.
Features
- Contoured shoulder to reduce scrub wear
- Tread void protection to reduce stone damage
- Solid shoulder design to improve stability
Applications
- Tandem Axle Trailers
- Regional Trailers
- Spread Axle Trailers
- Multi-Axle Trailers
Size | P.R. | T.D. 32nds | L.I. | S.S. | O.D. in. | S.W. in. | S.L.R. | R.W. in. | L.C.C. 1X lbs @ psi | L.C.C. 2X lbs @ psi |
|---|---|---|---|---|---|---|---|---|---|---|
| 255/70R22.5 | 16 | 16 | 140/137 | M | 36.6 | 10.0 | 17.1 | 7.5 | 5,513@120 | 5,072@120 |
| 11R22.5 | 14 | 16 | 144/142 | M | 41.5 | 11.0 | 19.3 | 8.25 | 6,175@105 | 5,840@105 |
| 11R22.5 | 16 | 16 | 146/143 | M | 41.5 | 11.0 | 19.3 | 8.25 | 6,610@120 | 6,005@120 |
| 11R24.5 | 14 | 16 | 146/143 | M | 43.5 | 11.0 | 20.3 | 8.25 | 6,610@105 | 6,005@105 |
| 11R24.5 | 16 | 16 | 149/146 | M | 43.5 | 11.0 | 20.3 | 8.25 | 7,160@120 | 6,610@120 |
| 295/75R22.5 | 14 | 16 | 144/141 | M | 39.9 | 11.7 | 18.7 | 9.0 | 6,175@110 | 5,675@110 |
| 295/75R22.5 | 16 | 16 | 146/143 | M | 39.9 | 11.7 | 18.7 | 9.0 | 6,610@120 | 6,005@120 |
