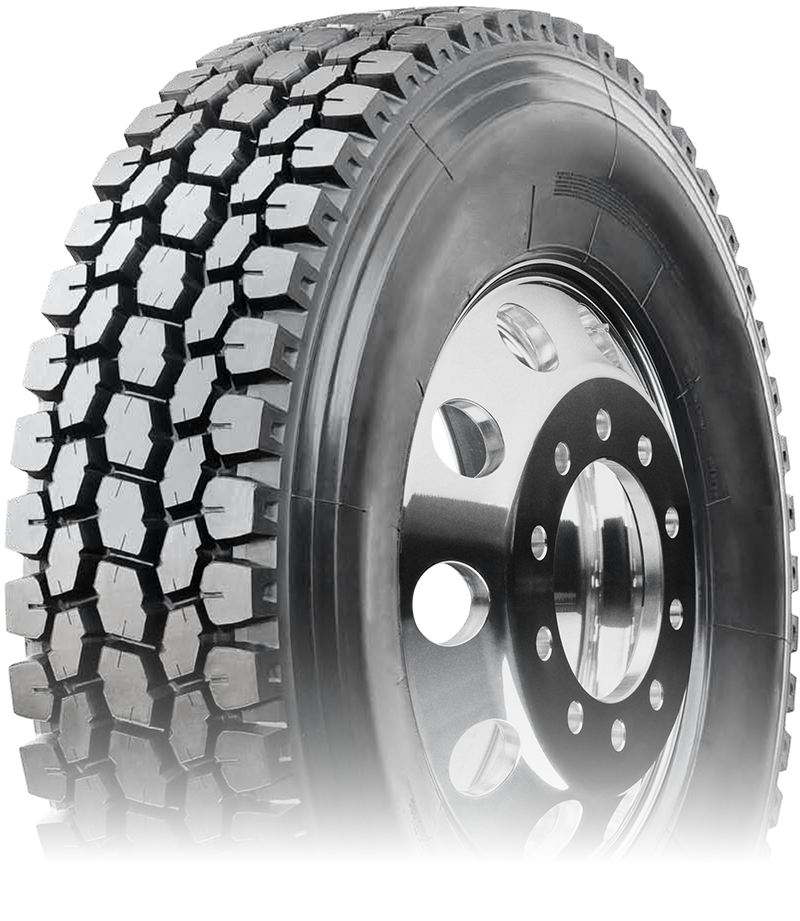

DD61
Regional Drive
The Defiance DD61 features an aggressive, open shoulder tread design which improves self-cleaning to deliver exceptional traction in mud and snow. Its staggered tread block pattern distributes load evenly to resist irregular wear. The DD61 is engineered with a deep 25/32” tread depth to provide a long tread life.
Features
- Open shoulder design delivers superior traction.
- Staggered tread blocks resist irregular wear.
- Deep tread depth for excellent tread life.
Applications
- Refuse Trucks
- Dump Trucks
- Regional Trucks
- Mixed Concrete Trucks
Size | P.R. | T.D. 32nds | L.I. | S.S. | O.D. in. | S.W. in. | S.L.R. | R.W. in. | L.C.C. 1X lbs @ psi | L.C.C. 2X lbs @ psi |
|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16 | 25 | 146/143 | M | 41.5 | 11.0 | 19.3 | 8.25 | 6,610@120 | 6,005@120 |
| 295/75R22.5 | 16 | 25 | 146/143 | L | 39.9 | 11.7 | 18.7 | 9.0 | 6,610@120 | 6,005@120 |
| 11R24.5 | 16 | 25 | 149/146 | M | 43.5 | 11.0 | 20.3 | 8.25 | 7,160@120 | 6,610@120 |
