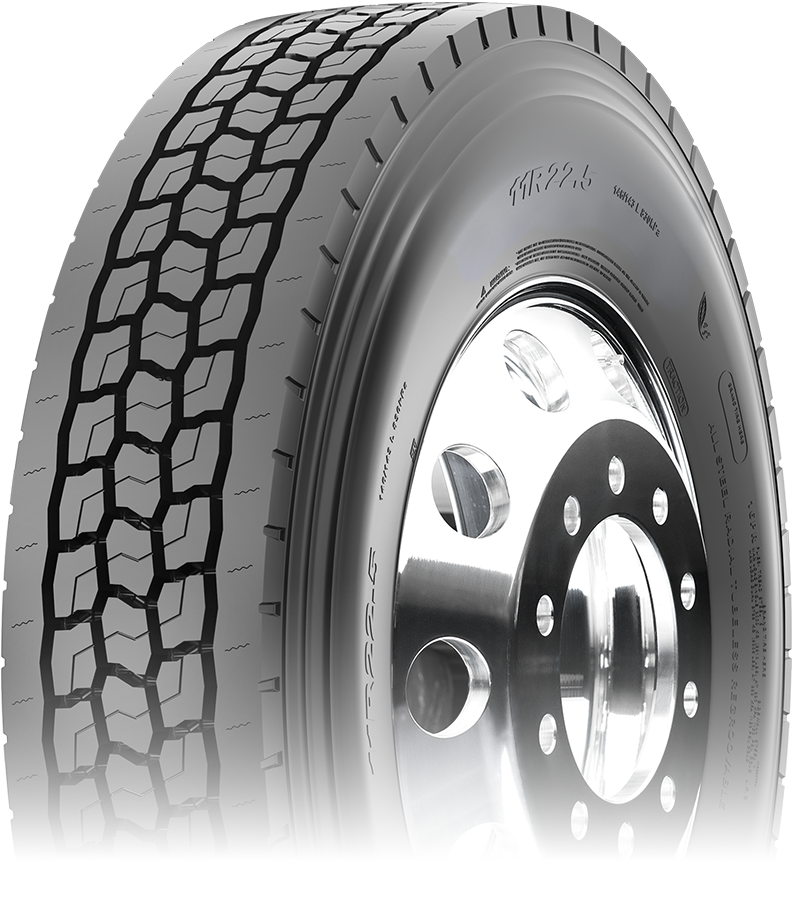

DD60
Closed Shoulder Drive
The Defiance DD60 closed shoulder drive tire features 29/32nds tread depth for long tread life. Solid shoulder ribs deliver stability and resistance to uneven wear. The DD60 is designed with three rows of aggressive tread blocks for traction and resistance to tread squirm. Siping improves both wet and ice traction. Advanced compound technology improves rolling resistance, mileage and wet traction without compromise.
Features
- Deep tread depth for excellent tread life.
- Aggressive tread design for superior traction.
- Solid shoulders resist uneven wear.
- 220 mm tread width
Applications
- Line Haul Trucks
- Regional Trucks
- Pick-up & Delivery Trucks
Size | P.R. | T.D. 32nds | L.I. | S.S. | O.D. in. | S.W. in. | S.L.R. | R.W. in. | L.C.C. 1X lbs @ psi | L.C.C. 2X lbs @ psi |
|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 29 | 144/142 | L | 41.9 | 11.0 | 19.3 | 8.25 | 6,175@105 | 5,840@105 |
| 11R22.5 | 16 | 29 | 146/143 | L | 41.9 | 11.0 | 19.3 | 8.25 | 6,610@120 | 6,005@120 |
| 295/75R22.5 | 14 | 29 | 144/141 | L | 40.4 | 11.7 | 18.7 | 9.0 | 6,175@110 | 5,675@110 |
| 11R24.5 | 14 | 29 | 146/143 | L | 43.9 | 11.0 | 20.3 | 8.25 | 6,610@105 | 6,005@105 |
| 11R24.5 | 16 | 29 | 149/146 | L | 43.9 | 11.0 | 20.3 | 8.25 | 7,160@120 | 6,610@120 |
| 285/75R24.5 | 14 | 29 | 144/141 | L | 41.8 | 11.1 | 19.4 | 8.25 | 6,175@110 | 5,675@110 |
