DT40
Premium Trailer

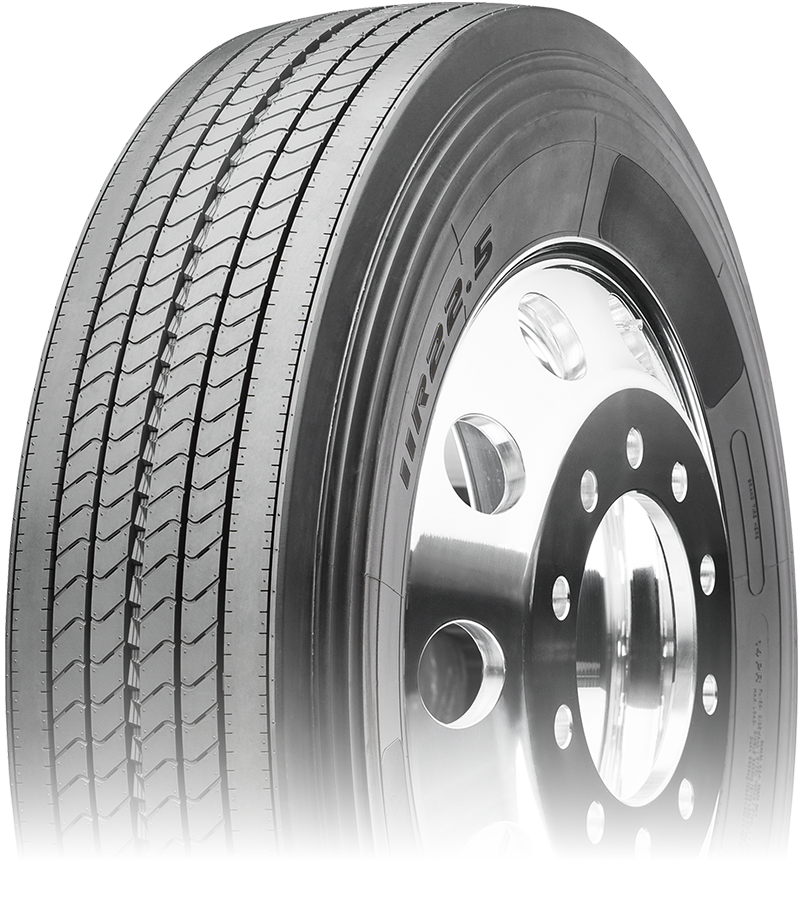

The Defiance DT40 is designed specifically for on highway trailer applications. The DT40 is engineered with an advanced rubber compound which delivers excellent tread wear and fuel saving performance. The DT40’s tread design resists irregular wear and minimizes skid wear. Its wide center groove features “stone ejectors” to prevent stone drilling, thereby extending tire life and improving retreadability.
Features
- Shallow tread reduces irregular wear.
- Optimized casing reduces rolling resistance.
- Solid shoulder ribs minimize skid wear.
Applications
- Tandem Axle Trailers
- Line Haul Trailers
- Regional Trailers
Size | P.R. | T.D. 32nds | L.I. | S.S. | O.D. in. | S.W. in. | S.L.R. | R.W. in. | L.C.C. 1X lbs @ psi | L.C.C. 2X lbs @ psi |
|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 12 | 144/142 | L | 41.5 | 11.0 | 19.3 | 8.25 | 6,175@105 | 5,840@105 |
| 11R24.5 | 14 | 12 | 146/143 | L | 43.5 | 11.0 | 20.3 | 8.25 | 6,610@105 | 6,005@105 |
| 295/75R22.5 | 14 | 12 | 144/141 | L | 39.9 | 11.7 | 18.7 | 9.0 | 6,175@110 | 5,675@110 |
| 285/75R24.5 | 14 | 12 | 144/141 | L | 41.3 | 11.1 | 19.4 | 8.25 | 6,175@110 | 5,675@110 |
