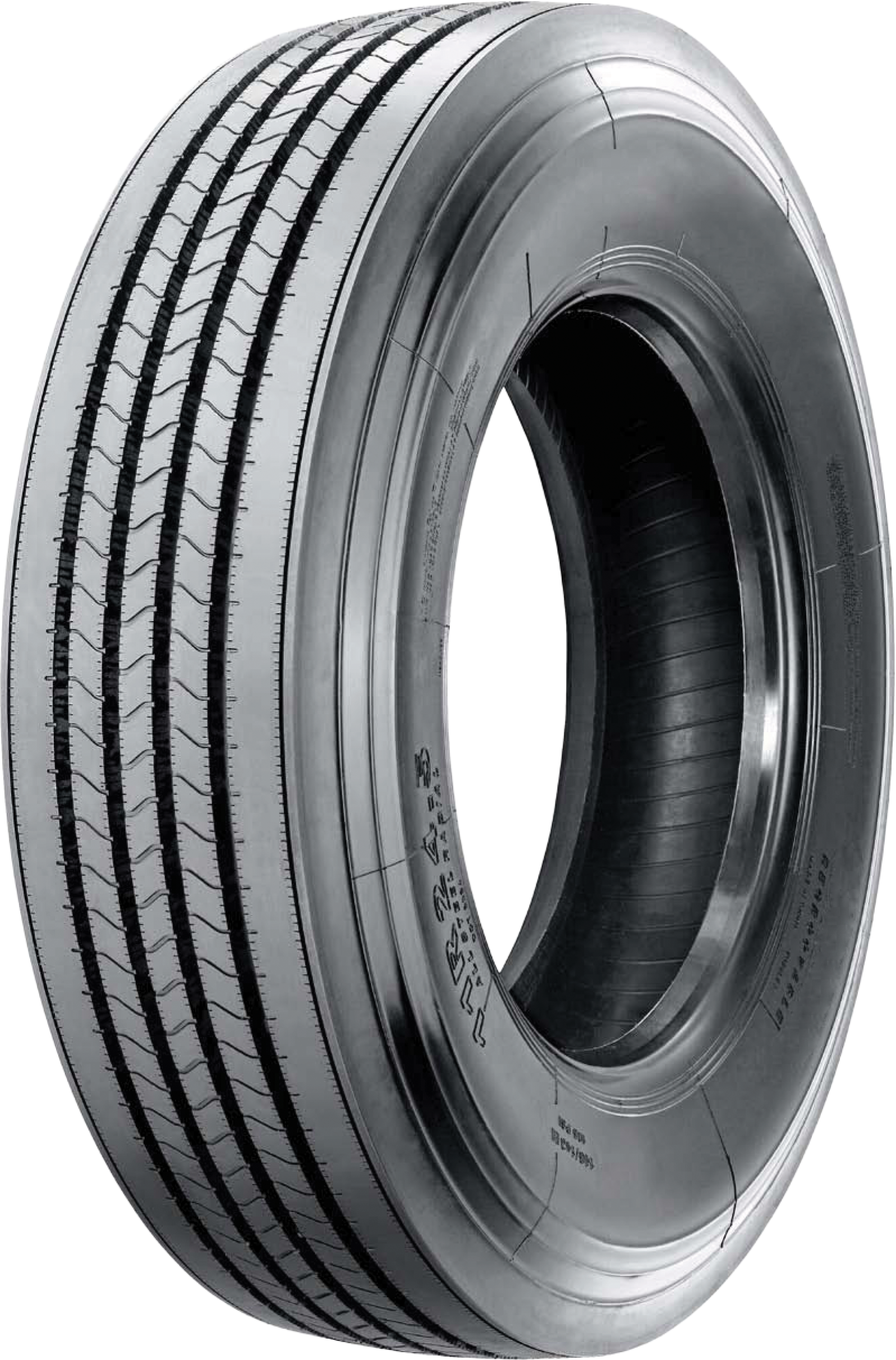

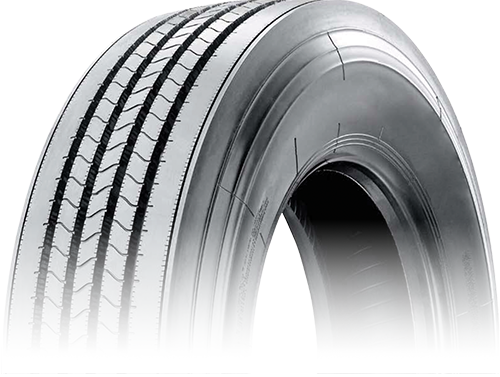

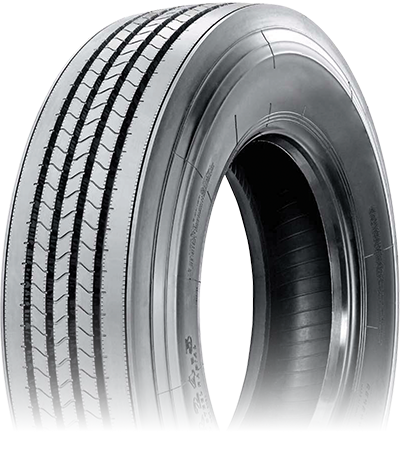

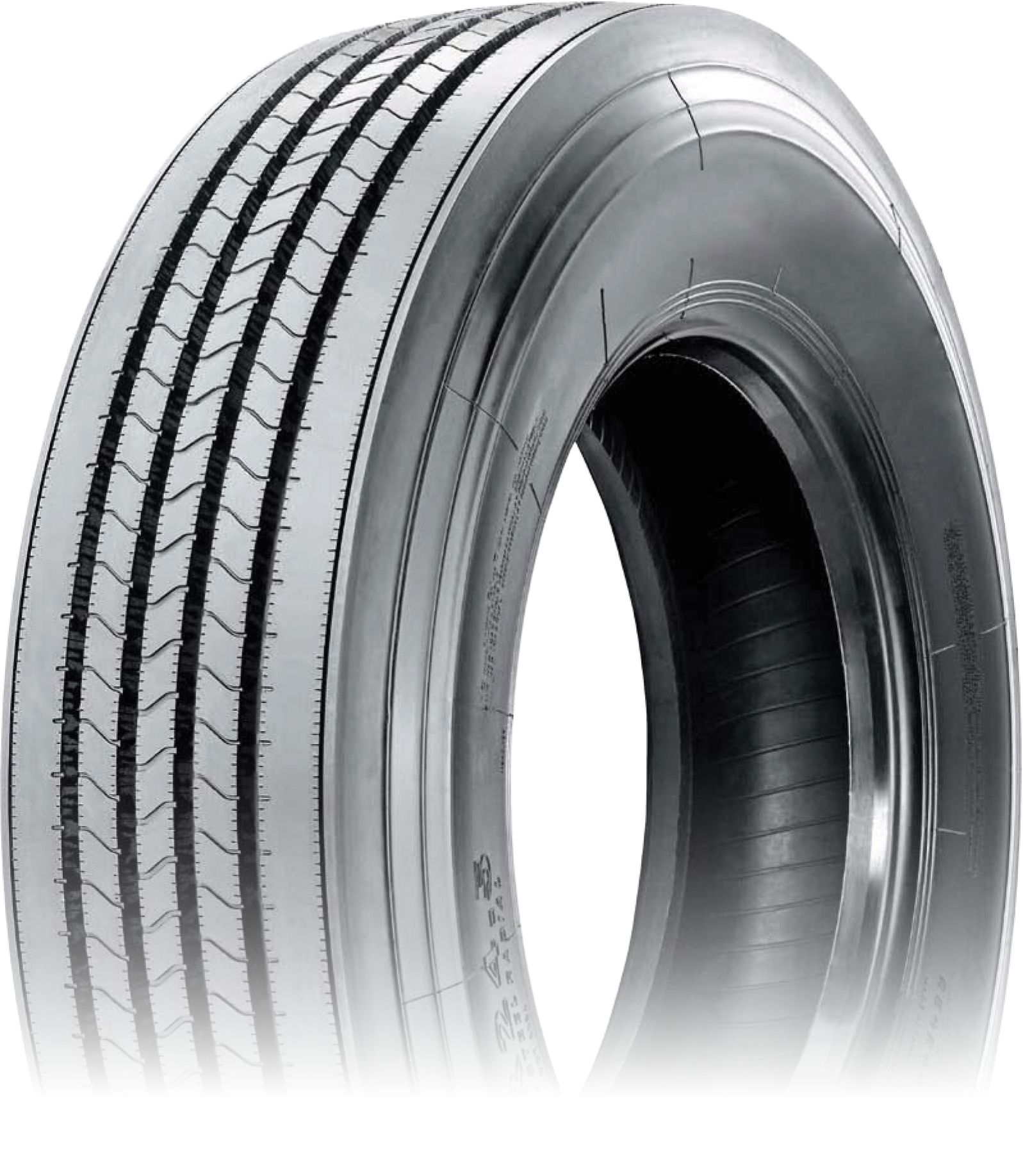

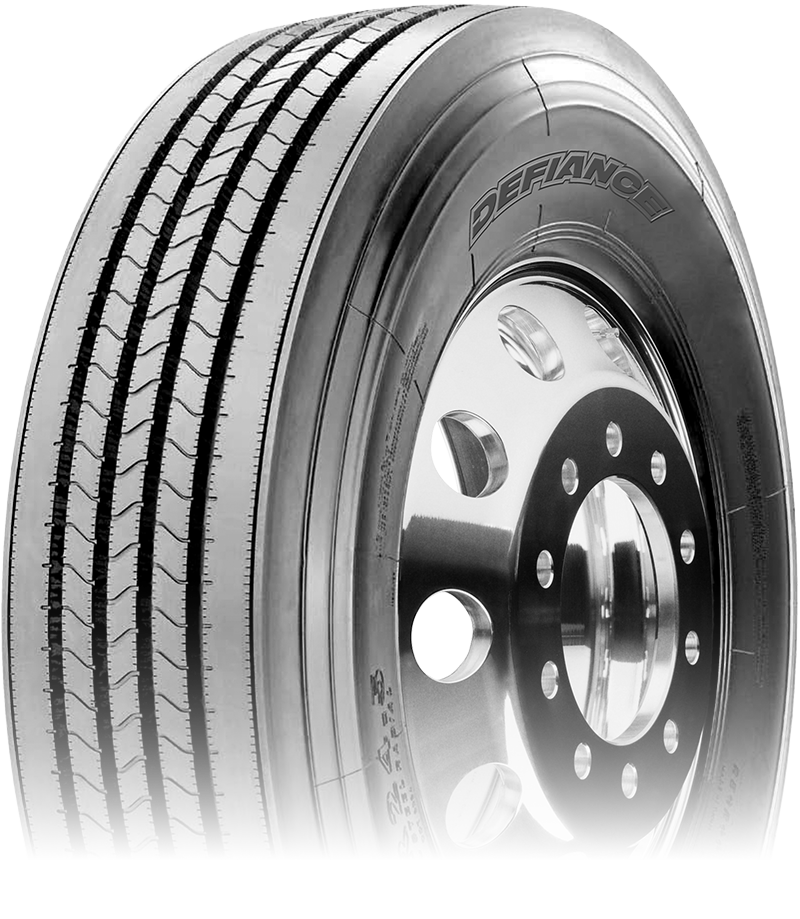

DS20
Premium Steer
The Defiance DS20 is a premium steer tire engineered to deliver long tread wear and superior handling characteristics. The DS20’s wide footprint and decoupling grooves provide superior wear. Horizontal sipes coupled with 4 broad circumferential grooves efficiently channel water away from the tire. The Defiance DS20 is an ideal tire for highway use in both line haul and regional applications.
Features
- Superior rubber compound for enhanced mileage.
- Wide circumferential grooves.
- Solid shoulders resist uneven wear.
Applications
- Line Haul Trucks
- Regional Trucks
Size | P.R. | T.D. 32nds | L.I. | S.S. | O.D. in. | S.W. in. | S.L.R. | R.W. in. | L.C.C. 1X lbs @ psi | L.C.C. 2X lbs @ psi |
|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 18 | 144/142 | M | 41.5 | 11.0 | 19.3 | 8.25 | 6,175@105 | 5,840@105 |
| 11R22.5 | 16 | 18 | 146/143 | M | 41.5 | 11.0 | 19.3 | 8.25 | 6,610@120 | 6,005@120 |
| 295/75R22.5 | 14 | 18 | 144/141 | M | 39.9 | 11.7 | 18.7 | 9.0 | 6,175@110 | 5,675@110 |
| 295/75R22.5 | 16 | 18 | 146/143 | M | 39.9 | 11.7 | 18.7 | 9.0 | 6,610@120 | 6,005@120 |
| 11R24.5 | 14 | 18 | 146/143 | M | 43.5 | 11.0 | 20.3 | 8.25 | 6,610@105 | 6,005@105 |
| 11R24.5 | 16 | 18 | 149/146 | M | 43.5 | 11.0 | 20.3 | 8.25 | 7,160@120 | 6,610@120 |
| 285/75R24.5 | 14 | 18 | 144/141 | M | 41.3 | 11.1 | 19.4 | 8.25 | 6,175@110 | 5,675@110 |
