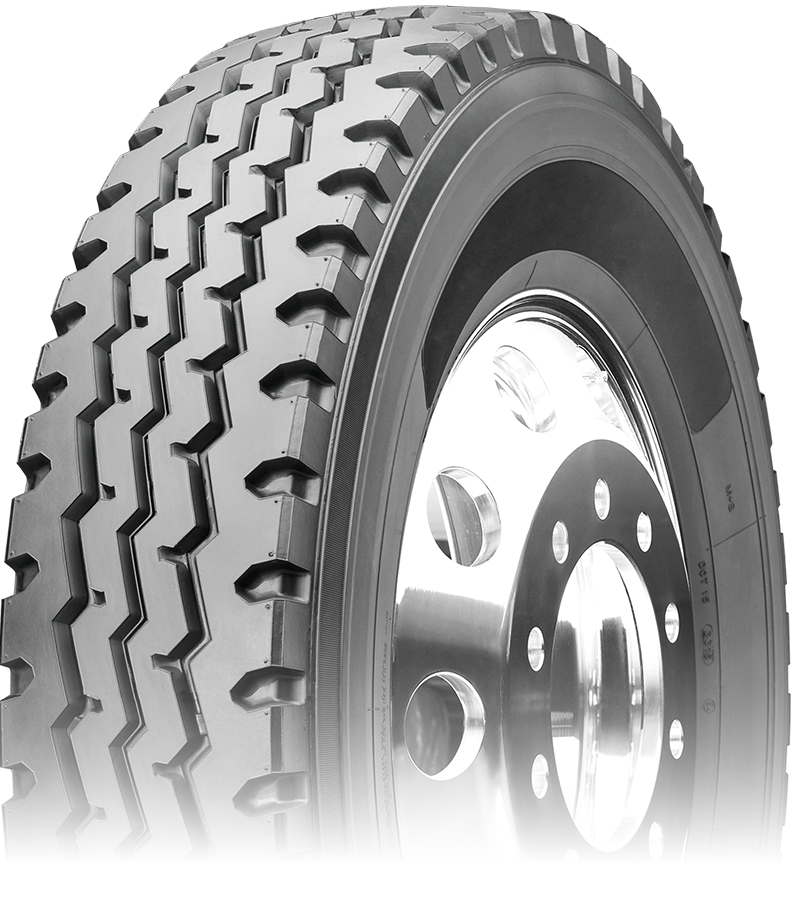

DM50
Mixed Service All Position
The Defiance DM50 is an all-position rib suitable for both on and off-road applications. The DM50 was engineered with extended tread life in mind, and designed to deliver class-leading chip resistance.
Features
- Four rib design with zigzag patterns to minimize stone retention.
- Deep arrowhead shoulder grooves for maximum traction in rough terrain situations.
- Extra-deep tread design and unique compound for extended tread life.
Applications
- Regional Trucks
- Dump Trucks
- Ready Mix Trucks
- Refuse Trucks
- Logging Trucks
Size | P.R. | T.D. 32nds | L.I. | S.S. | O.D. in. | S.W. in. | S.L.R. | R.W. in. | L.C.C. 1X lbs @ psi | L.C.C. 2X lbs @ psi |
|---|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16 | 20 | 148/145 | M | 41.5 | 11.0 | 19.3 | 8.25 | 6,940@123 | 6,395@123 |
| 11R24.5 | 16 | 21 | 149/146 | M | 43.5 | 11.0 | 20.3 | 8.25 | 7,160@120 | 6,610@120 |
