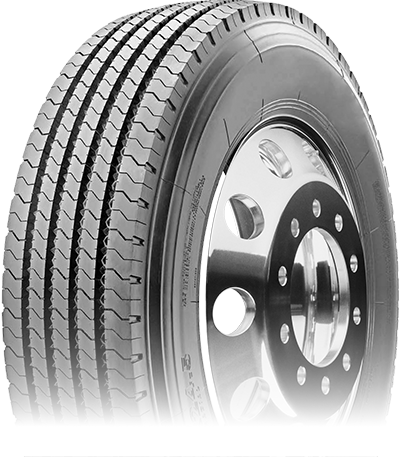

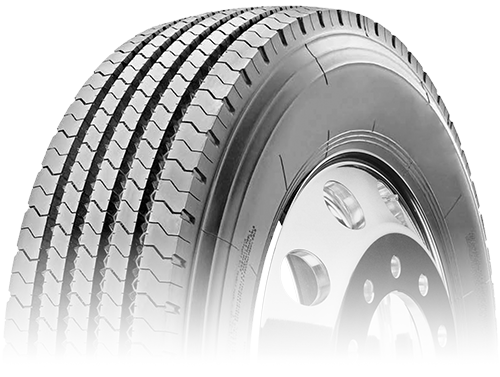

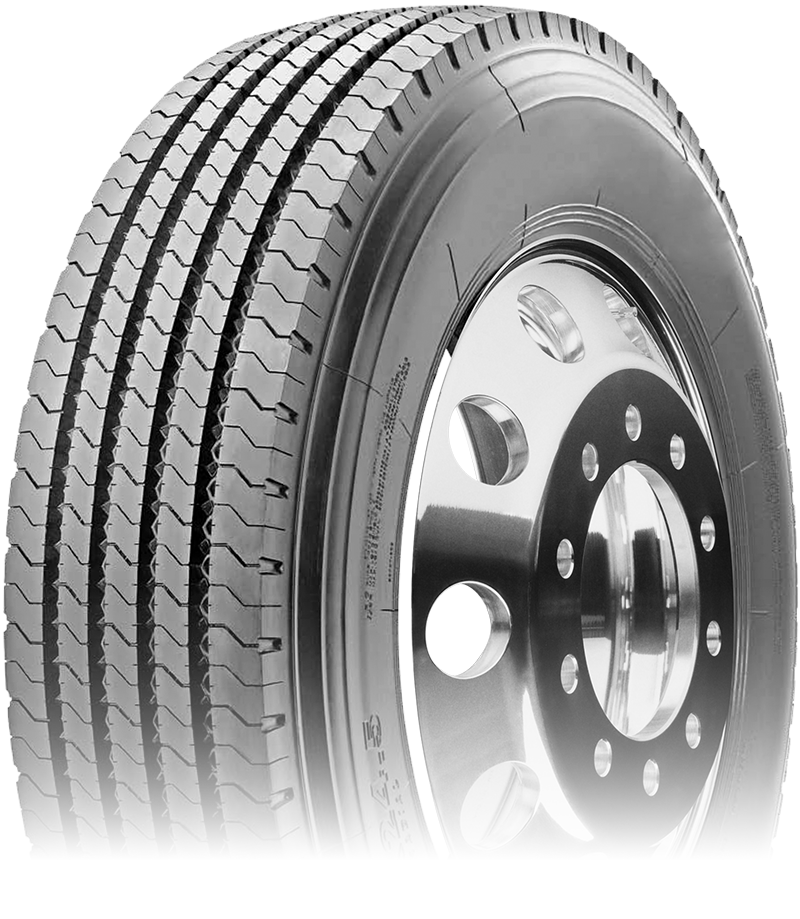

The Defiance DA30 Regional All Position is optimized for steer axles. The DA30 features a broad 5 rib tread pattern to provide precise handling and excellent stability. Wide circumferential grooves efficiently evacuate water from the tread area and feature “stone ejectors” to prevent stone drilling for a long casing life and improved retreadability. The DA30 is ideally suited for regional line haul applications, pick-up and delivery and highway service.
Size | P.R. | T.D. 32nds | L.I. | S.S. | O.D. in. | S.W. in. | S.L.R. | R.W. in. | L.C.C. 1X lbs @ psi | L.C.C. 2X lbs @ psi |
---|---|---|---|---|---|---|---|---|---|---|
11R22.5 | 14 | 19 | 144/142 | M | 41.4 | 10.9 | 19.3 | 8.25 | 6,175@105 | 5,840@105 |
11R22.5 | 16 | 19 | 146/143 | M | 41.4 | 10.9 | 19.3 | 8.25 | 6,610@120 | 6,005@120 |
295/75R22.5 | 14 | 19 | 144/141 | M | 40.0 | 11.7 | 18.7 | 9.0 | 6,175@110 | 5,675@110 |
295/75R22.5 | 16 | 19 | 146/143 | L | 39.9 | 11.7 | 18.7 | 9.0 | 6,610@120 | 6,005@120 |
11R24.5 | 14 | 19 | 146/143 | M | 43.4 | 10.9 | 20.3 | 8.25 | 6,610@105 | 6,005@105 |
11R24.5 | 16 | 19 | 149/146 | M | 43.4 | 10.9 | 20.3 | 8.25 | 7,160@120 | 6,610@120 |
285/75R24.5 | 14 | 19 | 144/141 | M | 41.4 | 11.1 | 19.4 | 8.25 | 6,175@110 | 5,675@110 |
